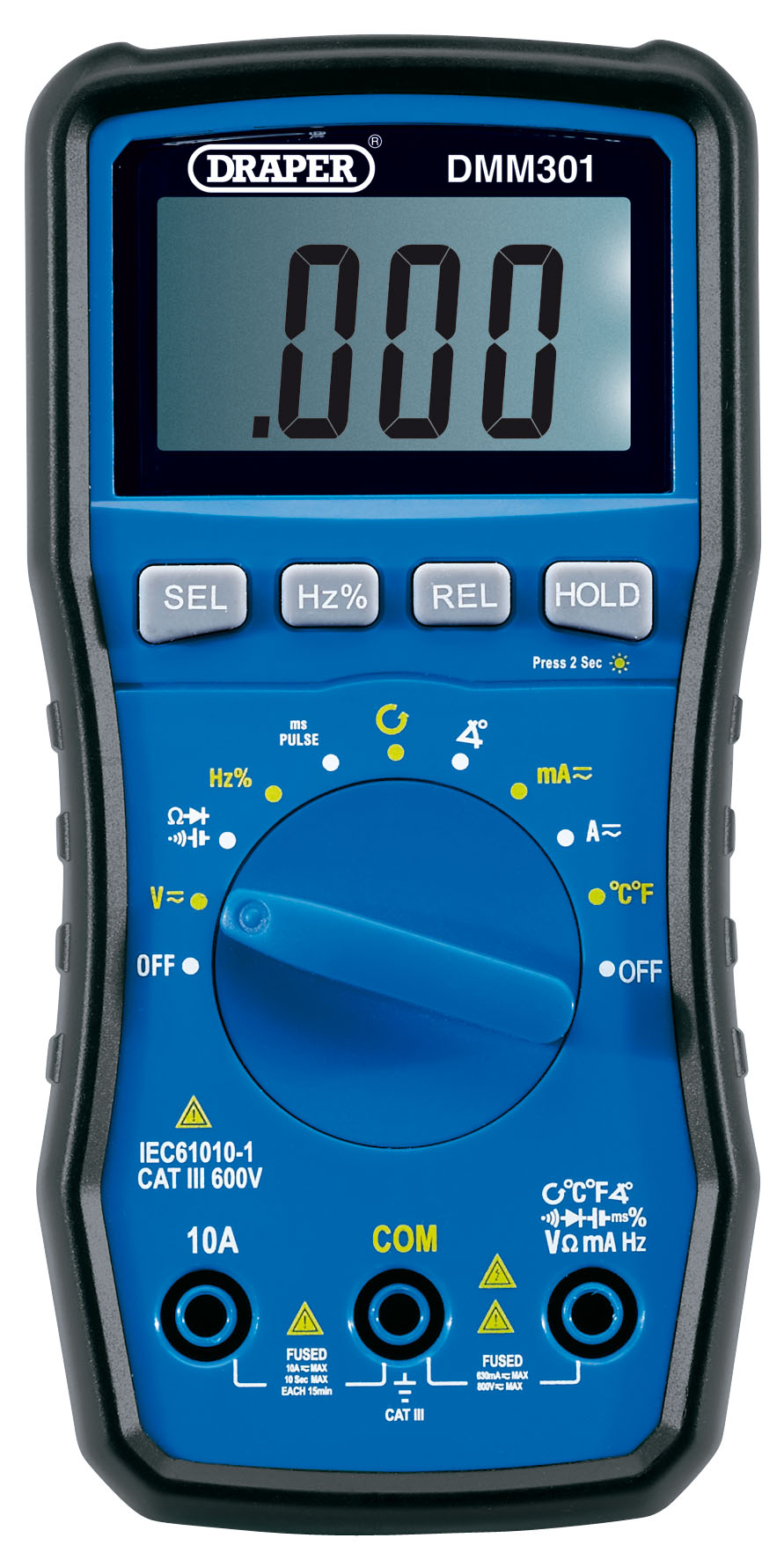

Draper 41822 (DMM301) - Automotive Digital Multimeter

Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe, inductive clamp, case and 2 x AAA batteries.

DC Voltage   600mV/6V/60V/600V
AC Voltage   6V/60V/600V
DC Amps   6mA/600mA/6A/10A
AC Amps   6mA/600mA/6A/10A
Resistance   600ohms/6kohms/60kohms/600kohms/6Mohms/60Mohm

DC Voltage   600mV/6V/60V/600V
AC Voltage   6V/60V/600V
DC Amps   6mA/600mA/6A/10A
AC Amps   6mA/600mA/6A/10A
Resistance   600ohms/6kohms/60kohms/600kohms/6Mohms/60Mohm
