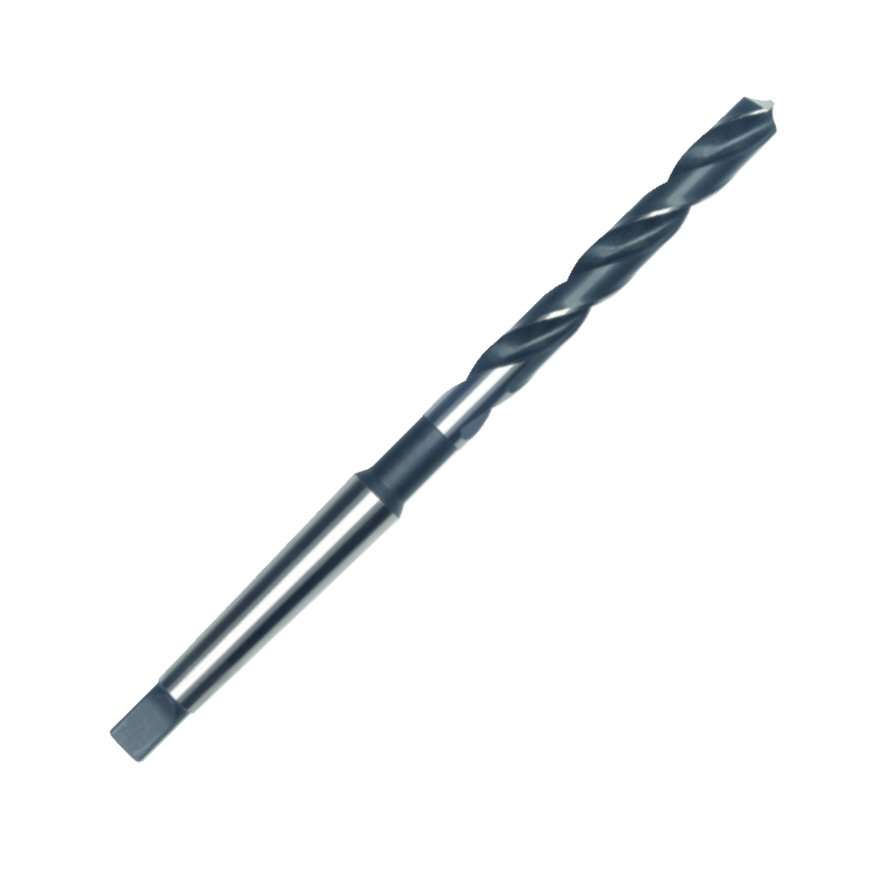

Presto 1100022.75 - 22.75mm HSS DIN345 MORSE TAPER SHANK DRILL

This site uses cookies.

General-purpose drill, to drill steels with tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.

Design characteristics
Point grinding: cone relief point
Point angle: 118°
Web thinning: form A > 14 mm
Helix angle: normal
Web thickness: normal
Web taper: normal
Flute form: normal
Tolerance of dia.: h8

Compare Products

FREE UK Mainland delivery on orders over £75

UK Mainland individual delivery cost - £4.95

Weight 0.5 kg

RRP 0.0000

Our Price (Inc VAT)

£0.00

Ex VAT £0.00

You Save £0.00!

This item is currently Out of Stock.
Please contact us for details.

Attribute Name	Value
Barcode:	5011315038867
Size:	22.75mm
Overall Length:	253mm
Weight:	0.4373
Helix angle:	Normal
Commodity Code:	82075060
Flute Length:	155mm
Finish Description:	Steam Tempered (Black Oxide)
Point Type:	118°
Shank Type:	Morse Taper Shank
Shank Diameter	MTS 2
Manufacturing Standard:	DIN345
Cutting Direction:	Right Hand
