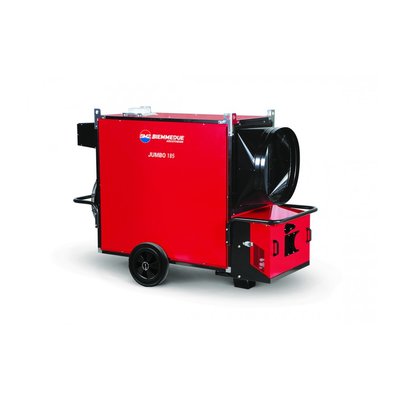

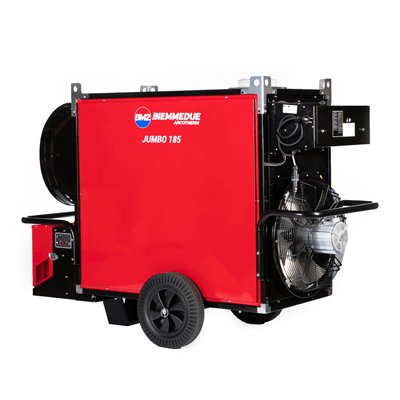

Arcotherm Jumbo 185M Indirect Space Heater
Exceptional heating solution
The Arcotherm Jumbo 185M is an efficient, effective, and practical indirect space heater capable of providing warm, clean air for large, open areas. You can improve the working conditions of factories, warehouses, garages, and more during colder periods. The 185M is also adept at heating public event spaces like marquees, unattended rooms such as stables and farmhouses, and for drying out vast areas. Indirect space heaters are safe to use for any space as they supply a clean air output while the fumes are exhausted separately. This powerful space heater provides 170kW of output with 92 -93% heating efficiency and 13000m³/hr airflow.
Exceptionally Robust
Durable build quality
The Arcotherm Jumbo 185M has the capability to cope with the demands of all challenging environments. The solid design and construction is ideal for industrial applications and the low noise level makes it suitable for commercial and domestic use too. The new, redesigned combustion chamber, higher performance 7-bade fans, and other significant components, such as the fan, burner, thermostat, etc., are utilised for greater efficiency and performance. All of the components are provided with quick couplings for faster assembly, easy maintenance, and they eliminate mistakes. The quick couplings and the electrical control panels have an IP65 rating to protect against ingress of small particles like dust and water and are located off ground level. The burner cover has reinforced panels with cross pleats for impact resistance and structural strength. The panels are removable for convenient access for repair and internal cleaning. The space heater is mounted on a weight bearing structure with improved anchorage.
Arcotherm Jumbo 185M
Available with a vast range of accessories
Large, robust wheels integrated at the base of the space heater and sturdy attachment rods make it easy to move from area to area. The mobility, power, and peripheral attachments of the Jumbo 185M makes it extremely practical and flexible. A variety of robust PVC ducting can be purchased to direct clean, warm air to multiple spaces using the 2 and 4-way splitters. The 2 and 4-way outlet splitters can be used in conjunction with muliple lengths of PVC ducting so that you can heat more than one space at the same time. You can heat anywhere up to 5 metres away from the heater, which is ideal for areas with limited floor space or have lots of foot traffic. The standard ducting, splitters, splitter ducting, thermostat, flue, and rain cowl are available to select with the tick boxes below your cart. We can also supply a fuel tank, side bumper kit, lifting kit, swivelling wheels kit, pre heated oil filter, flue storage kit, and chimney support kit available on request. Other extras that are included with the Jumbo 185M as standard include a Jumbo Tiger Loop, 450mm One Way Adaptor, Jumbo 85 Ecoflam Diesel Burner, 300mm Crush Proof Fuel Hose, 6000 Series ISO Male Tip Pro and BSPP Male x BSPP Male adapter. Enquire today or order with confidence via our online checkout or by phone to talk to our expert sales team directly.
Heater Dimensions: 2013mm x 912mm x 1414mm
Packaged Heater Dimensions: 1980mm x 800mm x 1390mm
Product Weight: 276kg
Packaged Weight: 296kg
Heating Capacity: 170kW
Heat Efficiency: 92.4%
Air Flow: 13,000m³/h
Air Temperature: 57℃
Fuel Consumption: 14.68l/hr
Electrical Power: 1550W
