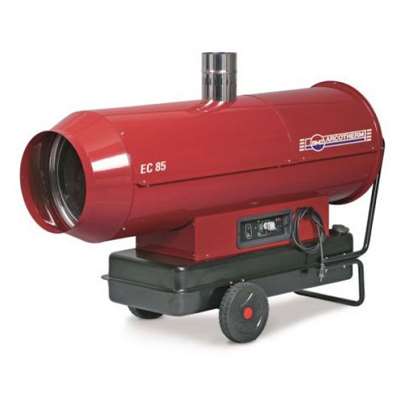

Arcotherm EC85DV - 80kW Indirect Oil Fired Heater (Dual Voltage)

Indirect Oil Fired Heater, the EC85 has an AISI 430 stainless steel combustion chamber and an automatic, built in oil burner, with a Danfoss pump. For extra safety, the EC85 is fitted with an electronic flame control device, a safety thermostat and and electronic control panel. The EC85 can be fitted with an optional 2 - Way splitter.

Thermostatically Controlled

Danfoss Fuel Pump

Safety thermostat

12 month warranty

Heating Capacity = 80kW / 274000Btu/hr
 Weight = 110kg
 H x W x D = 1025 x 690 x 1740mm
 Hose Length = 3m or 7.6m
 Hose Diameter = 405mm
 Tank Capacity = 105 litres
 Consumption Rate = 7.2 l/hr
 Airflow = 4300m³ / hr
 Thermal Efficiency = 88.5%
