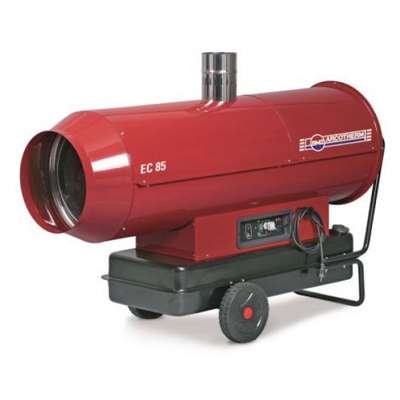

Arcotherm EC85 - 80kW Indirect Oil Fired Heater (Dual Voltage) Inc Standard Marquee Pack

Indirect Oil Fired Heater, the EC85 has an AISI 430 stainless steel combustion chamber and an automatic, built in oil burner, with a Danfoss pump. For extra safety, the EC85 is fitted with an electronic flame control device, a safety thermostat and and electronic control panel. The EC85 can be fitted with an optional 2 - Way splitter.

Thermostatically Controlled

Danfoss Fuel Pump

Safety thermostat

12 month warranty

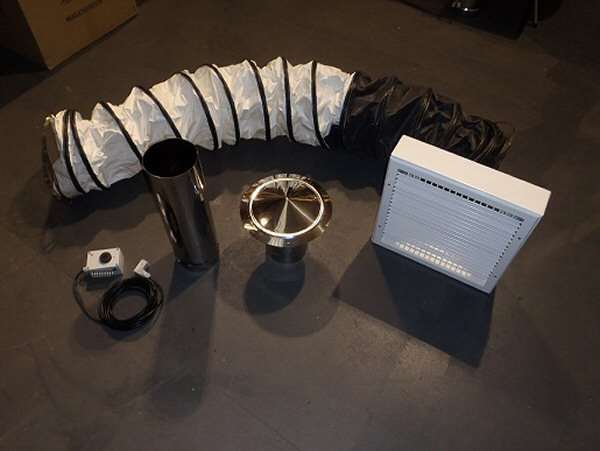

Standard Package Includes:
1 x EC85
1 x 3 Metre Ducting (16")
1 x Standard Diffuser (16")
1 x Thermostat c/w Lead
1 x 150mm x 500mm Flue
1 x 150mm Rain Cowl
Carriage (Mainland UK)

Heating Capacity = 80kW / 274000Btu/hr
 Weight = 110kg
 H x W x D = 1025 x 690 x 1740mm
 Hose Length = 3m or 7.6m
 Hose Diameter = 405mm
 Tank Capacity = 105 litres
 Consumption Rate = 7.2 l/hr
 Airflow = 4300m³ / hr
 Thermal Efficiency = 88.5%
