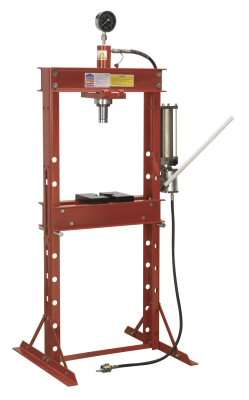

Sealey YK20FAH - Air/Hydraulic Press Yankee 20tonne Floor Type

• Steel frame construction with side mounted air motor powering hydraulic pump unit.

• Sliding hydraulic ram assembly giving 400mm of lateral travel for off-centre pressing applications.

• Fitted with ram pressure gauge.

• Supplied with flat pressing plate/V-blocks.

Additional Information:

• Table Aperture: 105mm.
• Working Table Width: 550mm.
• Ram Stroke: 190mm.
• Steel frame construction.
• Side mounted air motor powering hydraulic pump unit.
• Sliding hydraulic ram assembly giving 400mm of lateral travel for off-centre pressing applications.
• Fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.
• Model No. YK20FAH

Compare Products

FREE UK Mainland delivery on orders over £75

UK Mainland individual delivery cost - FREE

Weight 95 kg

RRP 695.9400

Our Price (Inc VAT)

£623.56

Ex VAT £519.63

You Save £72.38!

Attribute Name	Value
Barcode:	5024209915526
Current Sealey Catalogue page:	307
Model No:	YK20FAH
Capacity:	20tonne
Air Consumption:	4cfm
Type:	Air/Hydraulic
Overall Height:	1810mm
Working Pressure:	120-200psi
Weight:	92kg
Ram Stroke:	190mm
Extension Screw:	-
Maximum Ht. - Ram to Table:	1040mm
Minimum Ht. - Ram to Table:	75mm
Table Aperture:	105mm
Working Table Width:	550mm
Gauge Included:	Yes
Lateral Ram Travel:	400mm
Warranty:	1 Year
Bench or Floor Mounting:	Floor
Maximum Height - Ram to Table:	1040mm
Minimum Height - Ram to Table:	75mm
Working Table Depth:	205mm
Current Product Version:	002
Commodity Code:	8462619000
Brand:	Sealey
