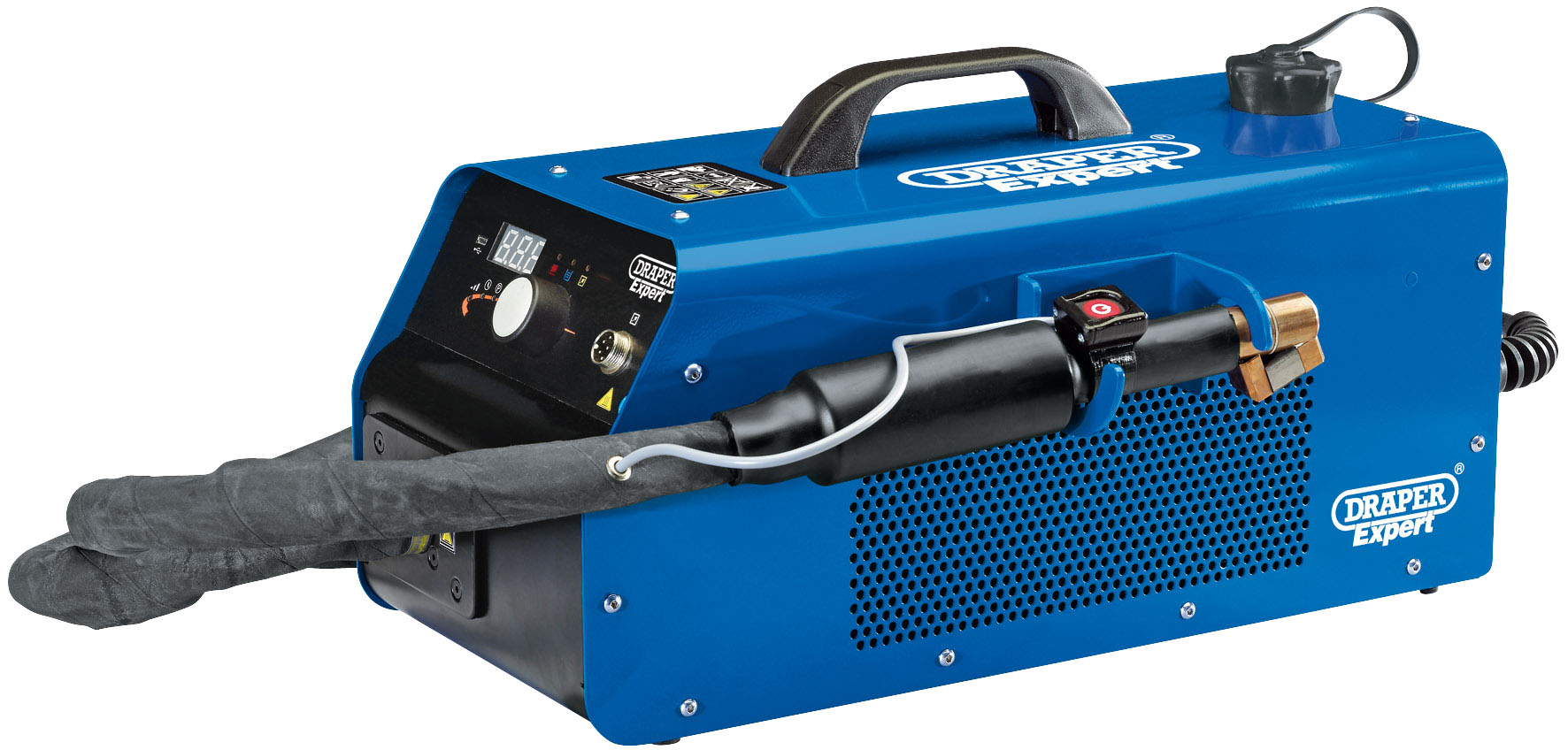

Draper 76171 (IHT-30) - Liquid Cooled Induction Heater (3.5kW)

Expert Quality, high powered, high specification, liquid cooled industrial induction heater. Designed for industrial workshops where controlled, safe and efficient heating of ferrous and some non-ferrous metals is required. Attached with a precise focusing tip for accurate work and fully adjustable, computer controlled, three heating modes. An ability to link, via the universal remote control software with external digital or analogue systems enable the user to utilise the control software to the maximum, whilst the quiet cooling internal fan assisted radiators allow continuous use. These features enable the user to replace dangerous and difficult to control oxy-acetylene gas heating with simple to use, but highly effective, electrical induction heating.

Input power   3.5kW
Operating frequency   20 - 60kHz
Voltage supply   230V 50/60Hz
Max current   16A
Output power   3kW (16A supply)
Liquid tank   1.5

Input power   3.5kW
Operating frequency   20 - 60kHz
Voltage supply   230V 50/60Hz
Max current   16A
Output power   3kW (16A supply)
Liquid tank   1.5
