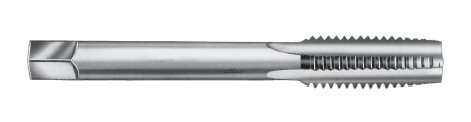

Presto 60200 - NO 5 UNF STF Bottom HS TAP

Straight Flute full size taps used as Machine taps or sets of 3 as Hand taps sets for tapping in free cutting Steel up to 800N/mm2. The perfect form thread is generated by a combination of effective pitch diameter, major diameter and chamfer length.

Compare Products

FREE UK Mainland delivery on orders over £75

UK Mainland individual delivery cost - £4.95

Weight 0.1 kg

RRP 46.6400

Our Price (Inc VAT)

£20.17

Ex VAT £16.81

You Save £26.47!

Attribute Name	Value
Barcode:	5011315074773
Size:	No.5 x 44 UNF Bottom
Overall Length:	48mm
Weight:	0.0042
Tolerance:	2B
Surface:	P0
Type Set:	STF Bottom
Type of hole:	TH / BH
Length of chamfer lead (Thread):	1,5 - 2,5
Commodity Code:	82074010
Flute Length:	16mm
Finish Description:	Bright Finish
Shank Type:	Straight Shank
Shank Diameter	3.15
Manufacturing Standard:	ISO529
Cutting Direction:	Right Hand
